Key Specifications / Features
The High-temperature Valve Packing Factory specializes in producing valve stem packing braided from a combination of carbon and expanded graphite yarns. This packing is designed for high-temperature applications and offers excellent sealing performance with low fugitive emissions. It is available in sizes ranging from 3 to 16 mm and can withstand maximum pressures up to 400 bar. This makes it suitable for demanding industrial applications where high pressure and temperature resistance are required.
- Model no.: MV-20250721-GP-02
- Hits: 1
- Categories: Graphite Packing
- Tags: Carbon Fiber Packing, Graphite Packing, Valve Packing
Detail Information

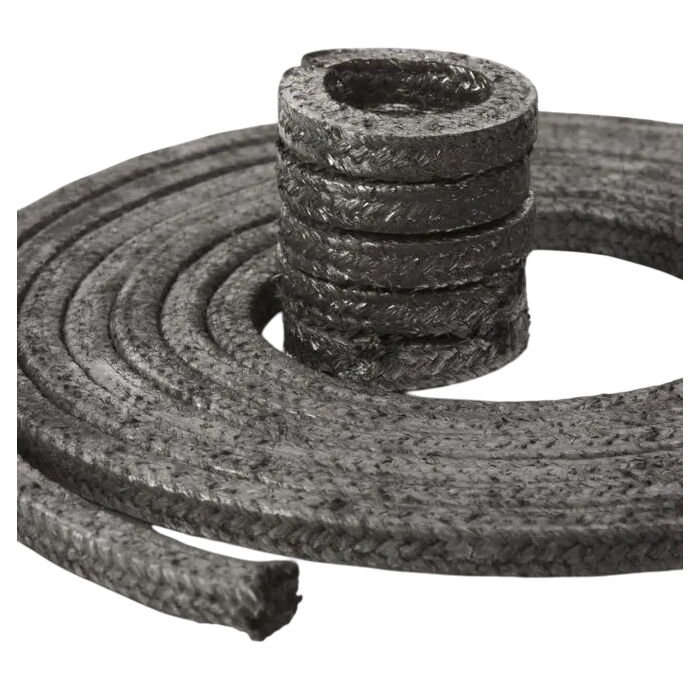

Product Name: High-temperature Valve Packing
Material: Graphite, Carbon
Dimensions: 3-16 mm
Pressure: Max 400 bar
Speed: < 1 m/s
pH: 0-14
Usage: Valves
Operating Temperature Range:
Minimum: -200 °C (-328 °F)
Maximum: 600 °C (1,112 °F)
Applications: High-temperature applications, High-pressure applications, Heat transfer fluids, Energy production, Refineries, All high-temperature fluids, etc.
Limitations: Precautions required in oxidizing environments.
Packing for use on fittings up to 600°C and with medium and high-pressure steam. Made from a yarn based on a high-resistance mix of carbon and expanded graphite yarns, impregnated and coated with a graphite-based mix. It contains an inhibitor developed from an exclusive process to provide unlimited protection of the stem, stuffing box housing, and stuffing box from corrosion over time. Low-friction high-temperature carbon packing meeting the requirements of fugitive emissions.
