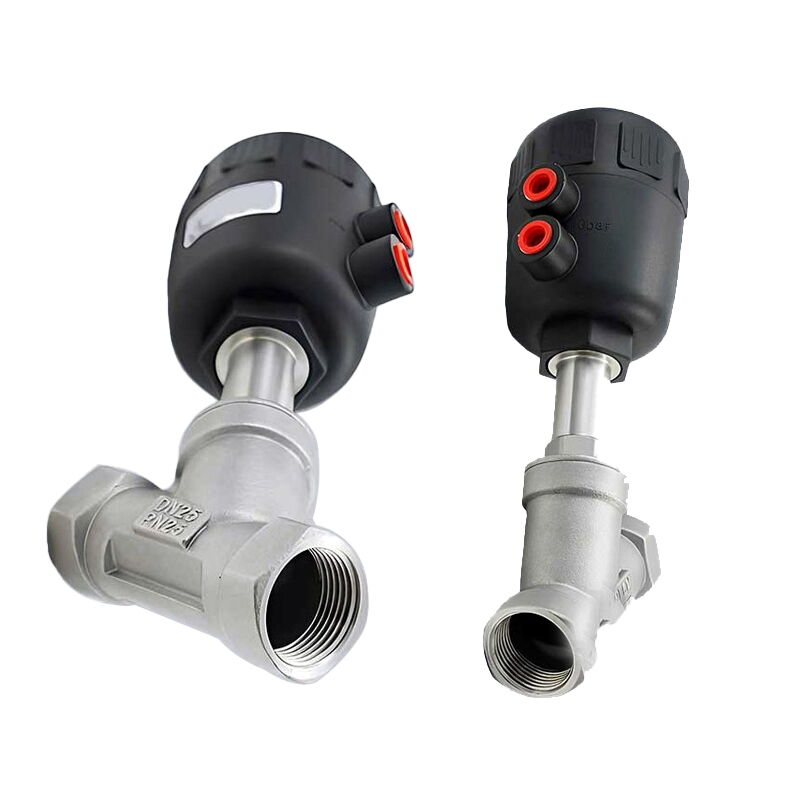

ASTM A351 CF8M Angle Seat Valve, Stainless Steel, DN25, PN25

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

ASTM A351 CF8M Angle Seat Valve Factory manufactures corrosion-resistant stainless steel angle seat valves (CF8M/SS316) with internal threaded ends, designed for precise flow control in demanding environments. These 1-inch (DN25) valves are rated for PN25/Class 300 LB and come pre-equipped with a pneumatic actuator for automated operation. Ideal for steam, chemicals, and high-purity applications in pharmaceuticals, food processing, and industrial automation.

Model no.: MV-20250714-ASV-02
Hits: 1
Categories: Low Emission Control Valves
Tags: Pneumatic Actuated Angle Seat Valve, Stainless Steel Angle Seat Valve, ASTM A351 CF8M Angle Seat Valve

Request a quote

Detail Information

Product Name: ASTM A351 CF8M Angle Seat Valve
Size: DN25, 1 Inch
Pressure: PN25, Class 300 LB
Body Material: Stainless Steel, ASTM A351 CF8M
End Connection: Internal Threaded
Actuation: Pneumatic Actuator
Applicable Medium: Water, steam, oil, fuel gas, nitric acid, acetic acid, etc.

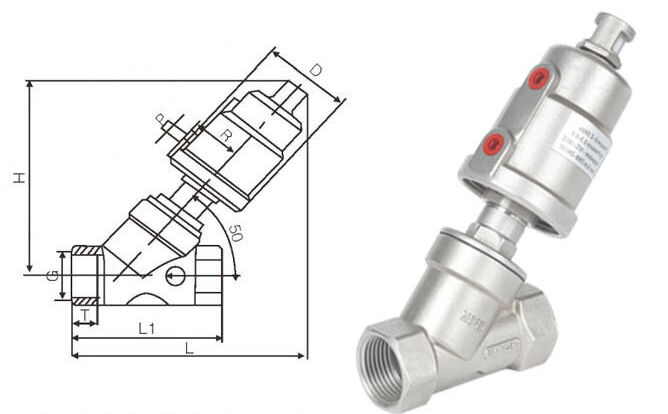

Specification	Actuator	L1	L	H	D	P	Max Working Pressure (MPa)	Air Source Pressure (MPa)
DN15	50	68	140	135	62	G1/8	PN25	4-10P
DN20	50	75	145	140	62	G1/8
DN25	50	90	155	145	62	G1/8
DN25	63	90	175	160	76	G1/8
DN32	63	115	193	175	76	G1/8
DN40	63	115	195	185	76	G1/8
DN50	63	135	205	200	76	G1/8
DN50	80	135	230	235	100	G1/8

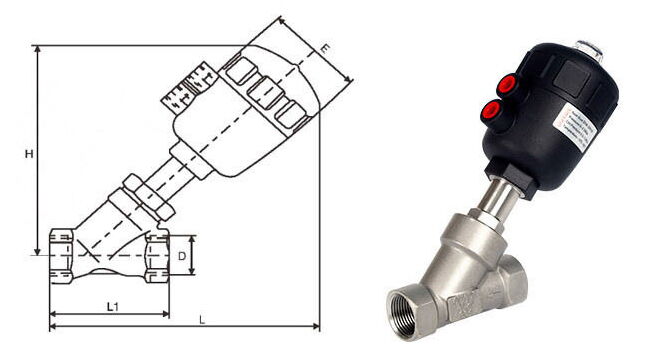

Specification	Actuator	L1	L	H	D	E	Max Working Pressure (MPa)	Air Source Pressure (MPa)
DN15	50	85	170	155	18	64	PN25	4-10 P
DN20	50	95	180	157	23	64
DN25	50	104	195	160	30	64
DN25	63	104	225	190	30	82
DN32	63	120	230	195	39	82
DN40	63	130	240	200	45	82
DN50	63	150	255	210	56	82
DN50	80	150	275	230	56	102
