Key Specifications / Features

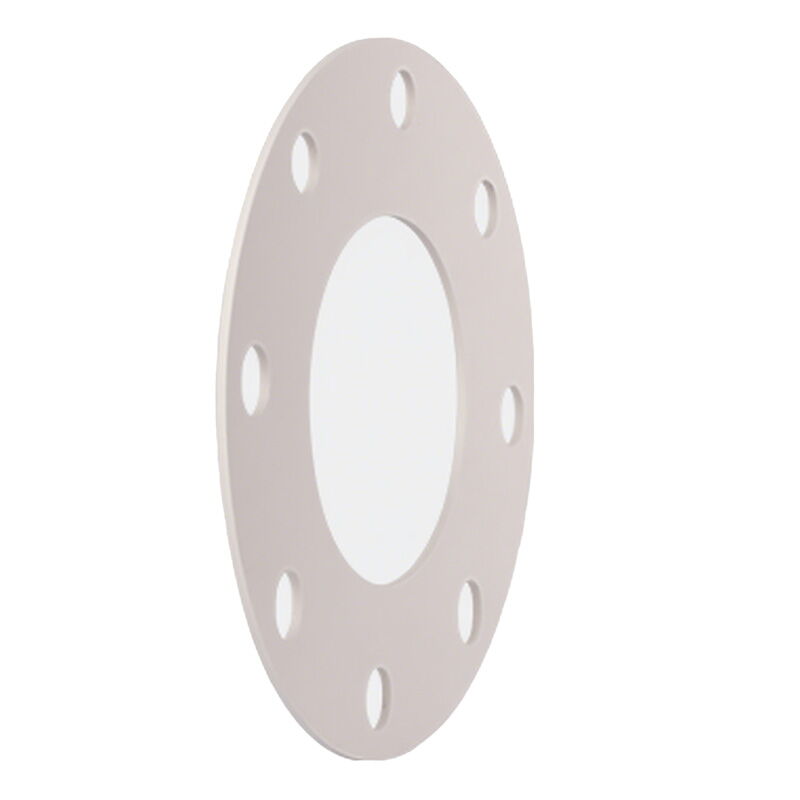

Our Barium Sulfate Filled PTFE Gasket Plant specializes in producing high-quality PTFE gaskets with barium sulfate filler. These gaskets are available in sheet sizes of 1500 mm × 1500 mm and 2000 mm × 2000 mm, with thickness options ranging from 1.0 mm to 8.0 mm. The density of the material is between 2.6 and 3 g/cm³, ensuring robustness and durability. These gaskets are highly customizable to meet specific industrial needs, offering excellent chemical resistance and mechanical properties.
- Model No.: MV-20250730-PG-01
- Hits: 3
- Categories: PTFE Gasket
- Tags: Barium Sulfate Filled Gasket, PTFE Gasket
Detail Information
Product Name: Barium Sulfate Filled PTFE Gasket
Material: Barium Sulfate, PTFE
Dimensions: 1500 mm * 1500 mm, 2000 mm * 2000 mm
Thickness: 1.0 mm to 8.0 mm
Density: 2.6-3 g/cm3
Tensile Strengt: >14 MPa
Compression Rate: 4% to 10%
Rebound Rate: ≥40%
Operating Temperature: -220°C to 260°C
Note: Supply of Various gasket shapes with a diameter of 2000 mm or less
Performance Features
Capable of withstanding high loads
Excellent compressibility and resilience
Wide chemical medium adaptability
Particularly suitable for alkaline conditions
Effectively prevents or reduces leakage
Application Range
Suitable for product manufacturing processes that require a "clean" production environment
Widely applicable material with good resistance to cold flow and stress relaxation
Particularly suitable for the pharmaceutical and food industries
