Key Specifications / Features
Our China Silica Filled PTFE Gasket Factory offers high-quality PTFE gaskets in various sizes, including 1500*1500 mm and 2000*2000 mm, with thickness options ranging from 1 to 8 mm. These gaskets feature a density of 1.9-2.3 g/cm³ and excellent creep resistance, making them ideal for applications requiring durability and stability under pressure.
- Model No.: MV-20250730-PG-02
- Hits: 7
- Categories: PTFE Gasket
- Tags: PTFE Gasket, Silica Filled Gasket
Detail Information

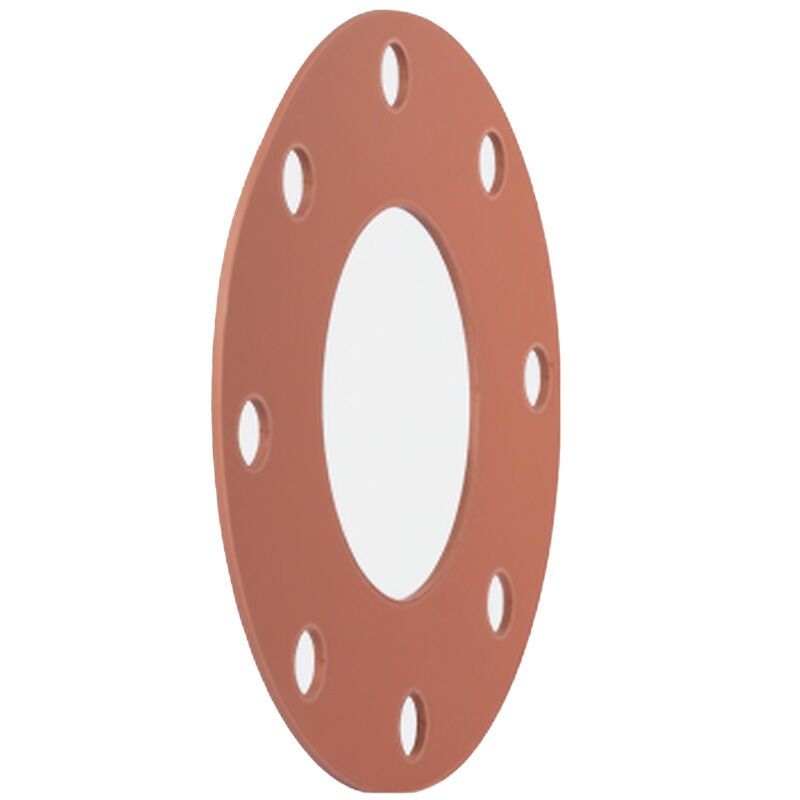

Product Name: Silica Filled PTFE Gasket
Material: Silica, PTFE
Dimensions: 1500 mm * 1500 mm, 2000 mm * 2000 mm
Thickness: 1.0 mm to 8.0 mm
Density: 1.9-2.3 g/cm3
Tensile Strengt: >14 MPa
Compression Rate: 7% to 12%
Rebound Rate: ≥40%
Operating Temperature: -220°C to 260°C
Note: Supply of Various gasket shapes with a diameter of 2000 mm or less
Performance Features
Excellent compressibility and resilience
Exceptional compressive strength, creep resistance, and cold flow resistance
Compensates for stress relaxation
Broad chemical compatibility
Effectively reduces or prevents leakage
Application Range
Widely used in industries such as petrochemical, oil, chemical, polysilicon material, papermaking, metallurgy, water supply, and water treatment
Offers broad applicability and can reduce the complexity and diversity of storage materials
