Key Specifications / Features
The Glass Microsphere Filled PTFE Gasket Factory specializes in producing high-performance PTFE gaskets with a thickness range of 1-8 mm and available in sizes of 1500/2000 mm. These gaskets have a density of 1.5-1.9 g/cm³ and offer excellent compressibility. The incorporation of glass microspheres enhances the gaskets' mechanical properties while maintaining their chemical inertness and thermal stability. These PTFE gaskets are ideal for applications requiring reliable sealing in corrosive environments and high-temperature conditions.
- Model No.: MV-20250801-PG-01
- Hits: 46
- Categories: PTFE Gasket
- Tags: PTFE Gasket, Glass Microsphere Filled Gasket
Detail Information

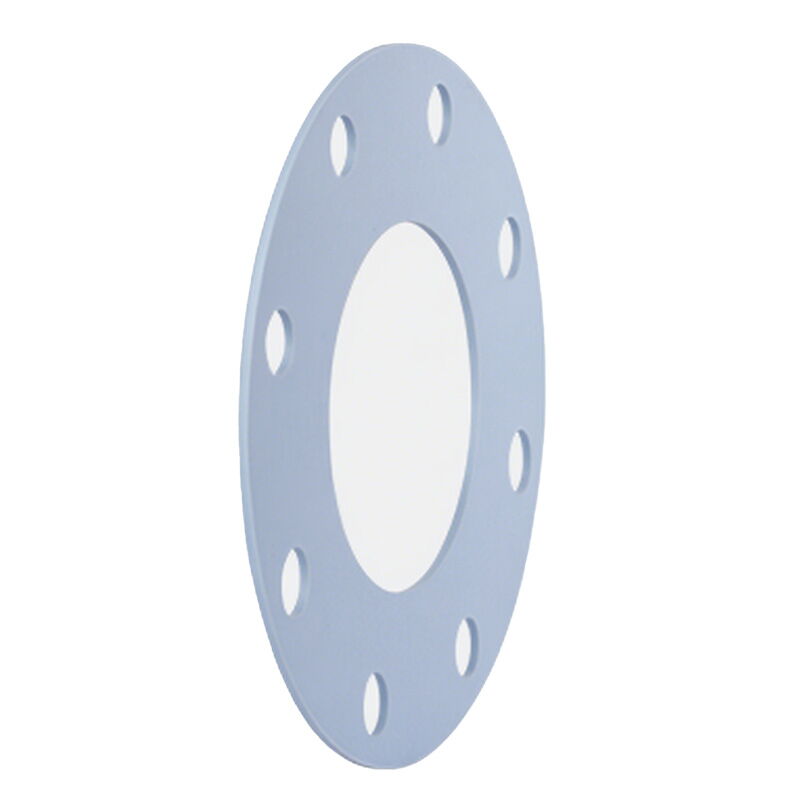

Product Name: Glass Microsphere Filled PTFE Gasket
Material: Glass Microsphere, PTFE
Dimensions: 1500 mm * 1500 mm, 2000 mm * 2000 mm
Thickness: 1-8 mm
Density: 1.5-1.9 g/cm3
Tensile Strengt: >14 MPa
Compression Rate: 25% to 45%
Rebound Rate: ≥30%
Note: Supply of Various gasket shapes with a diameter of 2000 mm or less
Performance Features
Excellent compressibility and resilience
Broad chemical medium adaptability
Wide applicable temperature range
High mechanical strength
Easy and quick installation and removal, with no residue left behind
Resistant to aging and erosion, suitable for long-term storage
