Key Specifications / Features

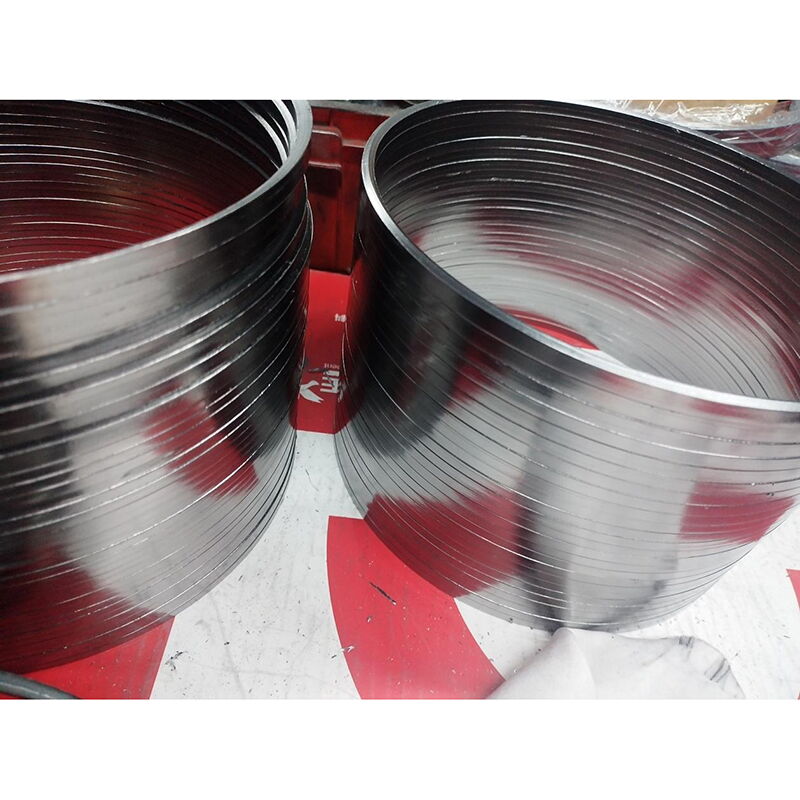

This Class 600 LB ball valve seat, manufactured by a specialized supplier, is designed for low-emission performance in high-pressure applications. With dimensions of ID 218 mm x OD 228 mm x THK 17 mm, the seat is constructed from graphite and reinforced with Inconel 600 for excellent thermal stability, corrosion resistance, and durability. Engineered for hard-seal ball valves, it ensures reliable sealing and extended service life in critical systems such as oil and gas, chemical processing, and power generation.
- Model No.: MV-20250710-GP-04
- Hits: 5
- Categories: Graphite Packing
- Tags: Graphite Valve Seat, Ball Valve Seat, Class 600 LB Valve Seat
Detail Information

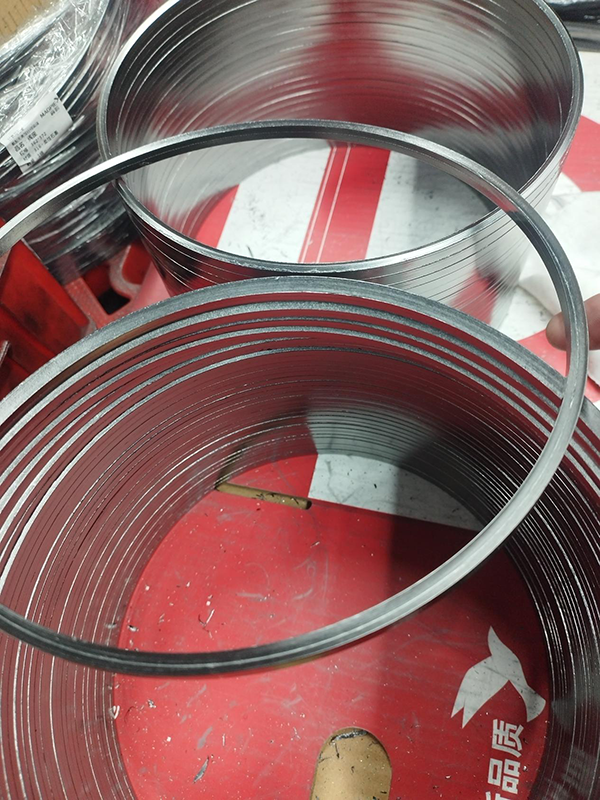

Product Name: Graphite Seat for Hard-Seal Ball Valve
Specification: 218 mm (ID) * 228 mm (OD) * 17 mm (Total Thickness)
Pressure Class: Class 600 LB
Testing Requirements: Hydrostatic & Pneumatic Sealing Performance
Material Properties:
Graphite Purity: ≥99 %
Metal Wire Content: 20 % (Inconel 600)
Sulfur Content: ≤50 PPM
Chlorine Content: ≤20 PPM
Benefits
Optimized V-ring angles ensure reliable, low-leakage sealing under both hydrostatic and pneumatic tests.
High-purity graphite with evenly distributed Inconel wire delivers excellent resilience and long service life.
Design Optimization Case
Original Customer Design: Three-ring, V-shaped composite structure with only a 5° angle difference between adjacent V-rings.
Issue Identified: A 5° angle mismatch creates poor sealing contact and high leakage risk.
Solution Proposed: Increased angle difference to 20° after explaining the graphite sealing mechanism to the customer.
Result: Customer approved the change; prototype testing confirmed excellent sealing performance.
Key Takeaway: We review every order from a valve-engineering perspective, proactively suggesting improvements to boost installation success and reduce customer costs rather than blindly following drawings.
