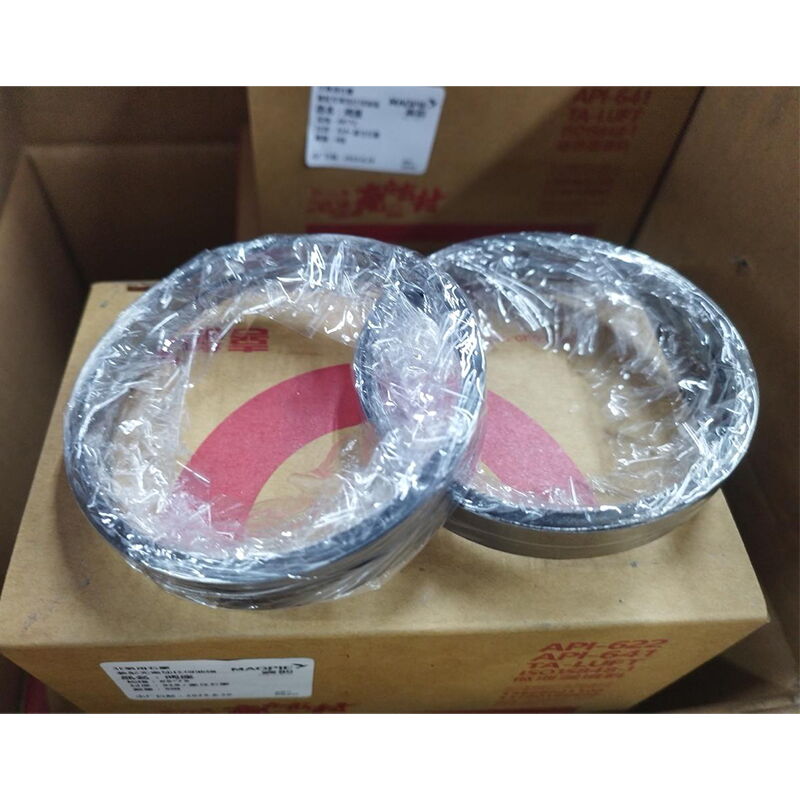

Hard Seal Ball Valve Seat, Graphite, Inconel 600, CL2500 LB
Key Specifications / Features
We are a China-based factory specializing in the production of hard seal ball valve seats. Our seats are designed for high-pressure applications, specifically rated at Class 2500 LB. The seats feature a composite structure, combining graphite and Inconel 600 to ensure high durability and performance under extreme conditions. This combination provides excellent resistance to high temperatures and pressures, making our products suitable for demanding industrial environments.
- Model No.: MV-20250702-GP-01
- Hits: 29
- Categories: Graphite Packing
- Tags: Ball Valve Seat, Class 2500 LB Valve Seat, Graphite Valve Seat
Detail Information
Product Name: Hard Seal Ball Valve Seat, Graphite
Model: Customized by the factory
Structure: Composite Structure
Pressure: Class 2500 LB
Size: Customized
Application Conditions: +360°C
Material Properties
Graphite Purity: ≥99%
Metal Wire Content: 40% (Material: Inconel 600)
Sulfur Content: ≤50PPM
Chlorine Content: ≤20PPM
Features
Excellent stability and sealing performance for hard-sealing ball valve seats.
Superior sealing under high pressure, ensuring long-term effective stability of the ball valve seal.
