(API 624 Additional High Temperature Version)
Key Specifications / Features
Our Stainless Steel Diaphragm Valves are precision-engineered by a reputable manufacturer, offering durability and reliability. Available in SS 304/304L and SS 316/316L materials, these valves cater to a wide range of applications. They come in sizes from DN10 to DN63 (3/8 inch to 2-1/2 inch) and support pressure ratings of PN10, PN16, and Class 150 LB. Designed for manual operation with clamp ends, these valves ensure precise control and easy maintenance, making them ideal for various industrial processes.
- Model No.: MV-20250707-DV-01
- Hits: 1
- Categories: Low Emission Control Valves
- Tags: Stainless Steel Diaphragm Valve, SS 304 Diaphragm Valve, SS 316 Diaphragm Valve

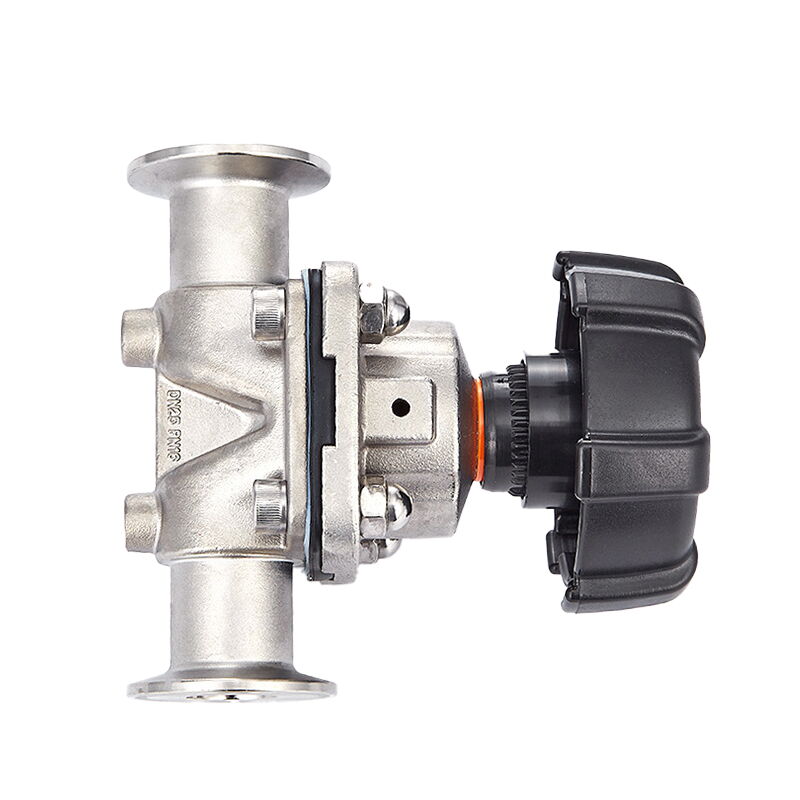

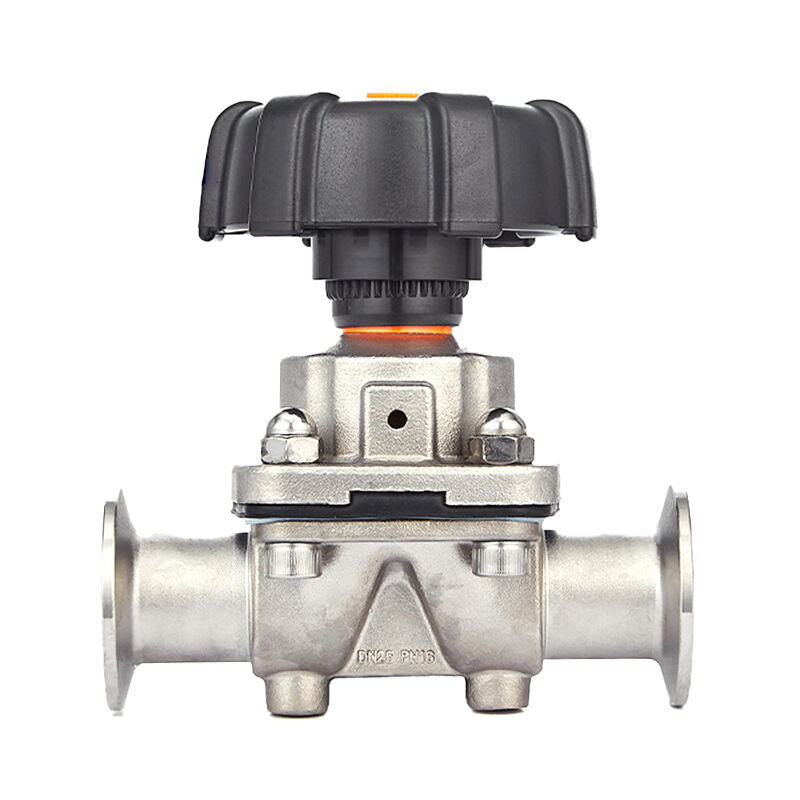

Detail Information
Product Name: Stainless Steel Diaphragm Valve
Body Material: Stainless Steel SS 304/304L, SS 316/316L
Size: DN10-DN63, 3/8 Inch to 2-1/2 Inch
Pressure: PN10, PN16, Class 150 LB
Temperature Range: -20°C to +150°C
Seals: EPDM, Teflon PTFE, FPM, Silicon
Operation: Manual (Pneumatic, Electric)
Connection Types: Tri-Clamp/Clamp End

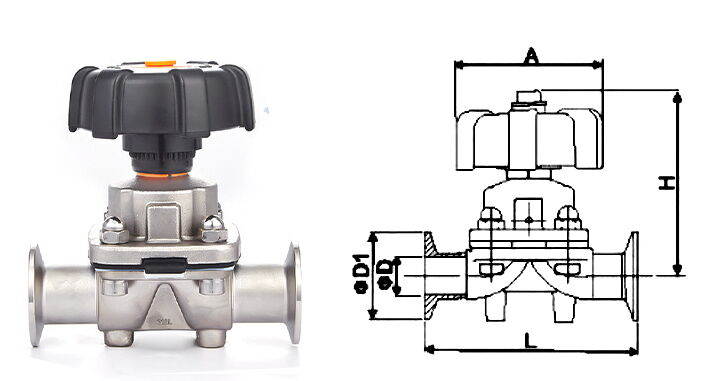

Diaphragm Valve Dimensions Table
|
Specification |
A |
L |
D1 |
D |
H |
|
DN10 |
38 |
90 |
25 |
10 |
70/78 |
|
DN15 |
90 |
108 |
50.5 |
16 |
105/115 |
|
DN20 |
90 |
125 |
50.5 |
22 |
105/115 |
|
DN25 |
90 |
125 |
50.5 |
29 |
115/130 |
|
DN32 |
110 |
150 |
50.5 |
35 |
120/140 |
|
DN40 |
110 |
160 |
50.5 |
35 |
120/140 |
|
DN50 |
140 |
192 |
64 |
48 |
142/160 |
|
DN63 |
140 |
216 |
77.5 |
59 |
180/200 |
