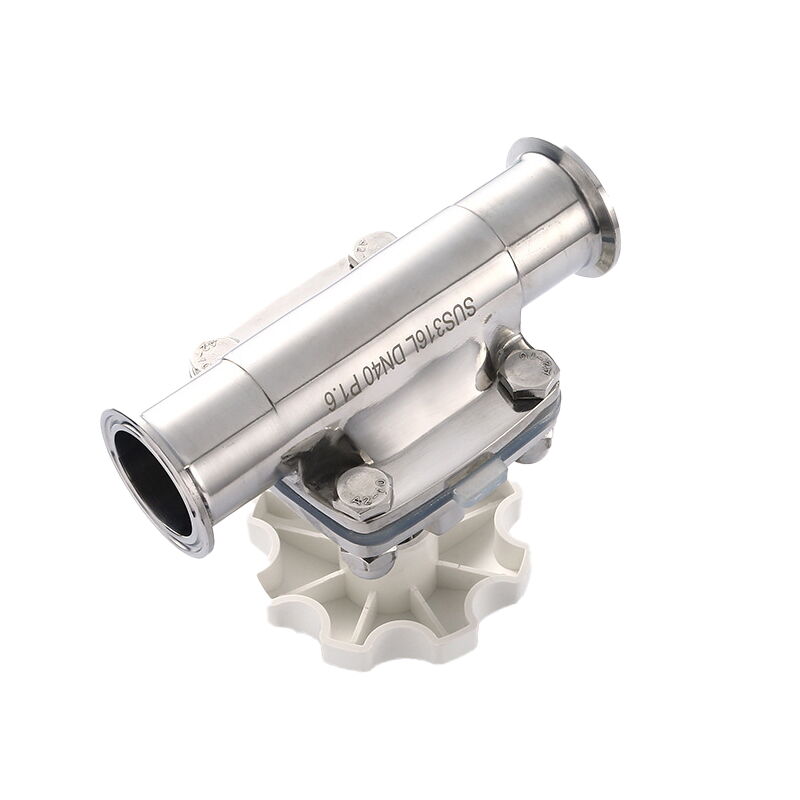

Food Grade Diaphragm Valve, SUS 304/316, DN15-DN57, Clamped

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

Our Food Grade Diaphragm Valves are specifically designed for the food processing industry, ensuring hygiene and safety. Manufactured by a trusted supplier, these straight-through type valves are made from high-quality SUS 304 and SUS 316 materials, meeting stringent hygienic standards. Available in sizes ranging from DN15 to DN57, they support pressure ratings of PN10 and PN16. Equipped with clamped ends for quick assembly, these valves offer easy installation and maintenance.

Model No.: MV-20250707-DV-02
Hits: 0
Categories: Low Emission Control Valves
Tags: Food Grade Diaphragm Valve, SUS 304 Diaphragm Valve, SUS 316 Diaphragm Valve

Request a quote

Detail Information

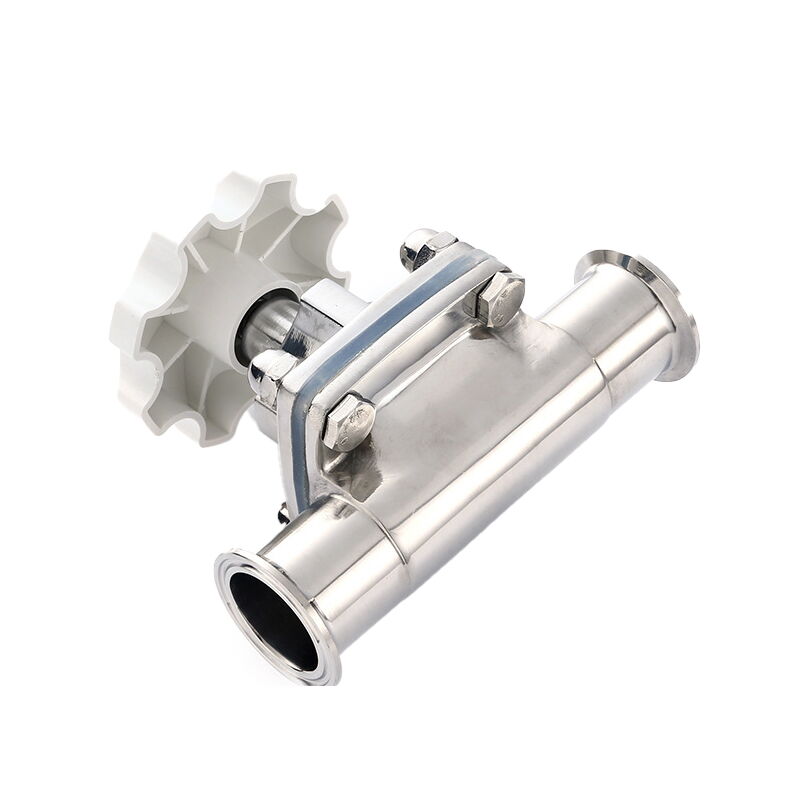

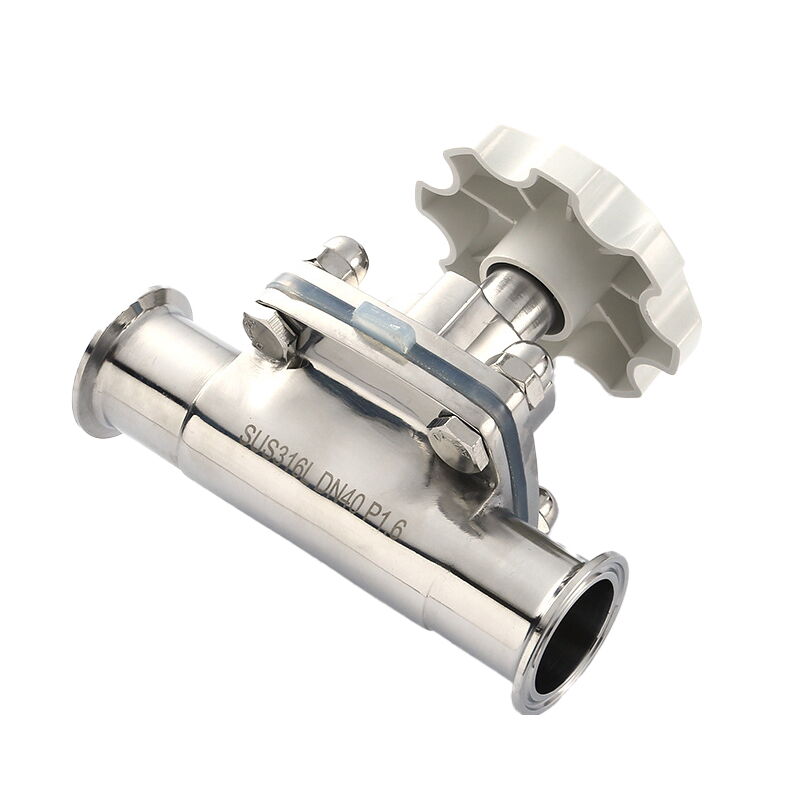

Product Name: Food Grade Diaphragm Valve, Straight Through, Quick Open
Material: Hygienic Grade SUS 304, SUS 316
Nominal Diameter: DN15-DN57, 1/2 Inch - 2-1/4 Inch
Pressure: PN10, PN16, Class 150 LB
Operation: Manual
End Connection: Clamped, Quick Assembly
Applications: Beer industry, dairy industry, pharmaceutical industry, beverage industry, machinery manufacturing, and chemical industry.

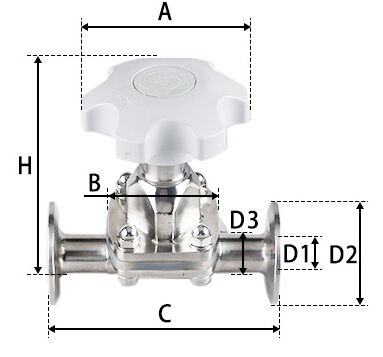

Diaphragm Valve Specifications Table

Nominal Diameter	A	B	C	D1	D2	D3	H	Weight/G
DN15	77.5	52.5	110	16	50.5	20	104	639
DN20	77.5	63	118.5	20.5	50.5	23.5	107	812
DN25	77.5	67.5	133	22	50.5	27	117.5	961
DN32	77.5	75.5	151	30.5	50.5	33.5	121	1127
DN40	95.5	90	163	35.5	50.5	39	140	1557
DN45	118	90	165	42	64	47	144.5	1785
DN50	118	102	194	48.5	64	52.5	162	2430
DN57	118	99.5	203	52.5	77.5	57.5	157.5	2565
