Vertical Check Valve, ASTM A216 WCB, DN15-DN250, PN16, PN25
(API 624 Additional High Temperature Version)
Key Specifications / Features

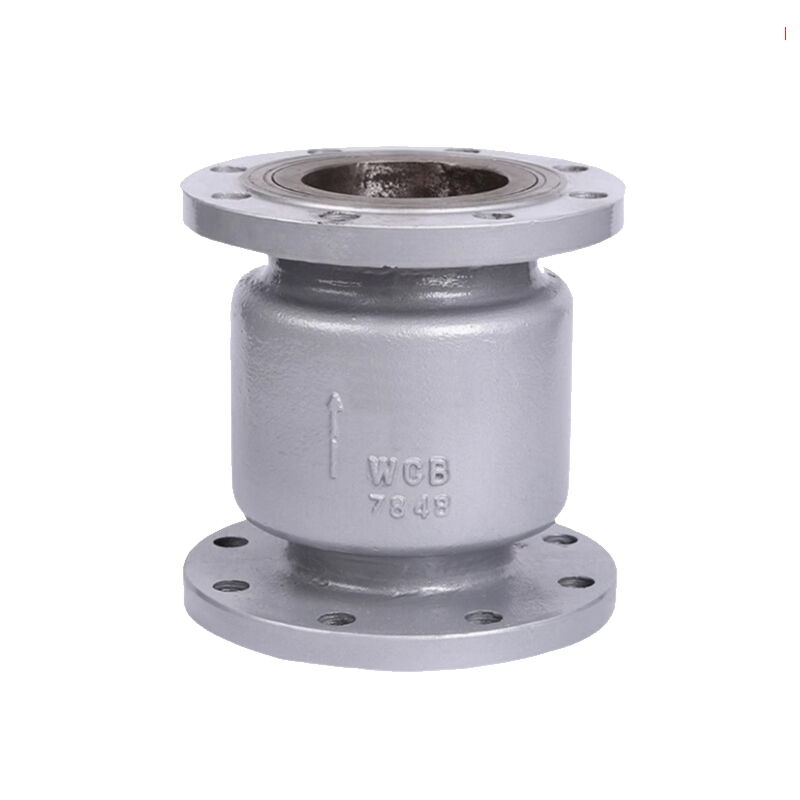

The Vertical Check Valve Supplier from China offers a range of one-way, non-return valves designed to ensure fluid flow in a single direction. These valves are made from ASTM A216 WCB/cast steel, providing durability and reliability. Available in sizes from DN15 to DN250 (1/2 to 10 inches) and pressure ratings of PN16 and PN25, they feature flanged ends for easy integration into piping systems.
- Model No.: MV-20250701-CSCV-01
- Hits: 20
- Categories: Cast Steel Check Valve
- Tags: Vertical Check Valve, ASTM A216 WCB Check Valve, PN25 Check Valve
Detail Information
Product Name: Cast Steel Vertical Check Valve, One-way Valve, Non-return Valve
Material: ASTM A216 WCB/Cast Steel
Size Range: DN15-DN250, 1/2-10 Inch
Working Pressure: 1.6/2.5 MPa, PN16, PN25, Class 150-300 LB
End Connection: Flanged
Operating Temperature: Medium type ≤325°C, Heavy type ≤425°C
Applicable Medium: Water, gas, oil and most other fluids
Note: For working pressures of 4.0/6.4 MPa and above, consult the manufacturer

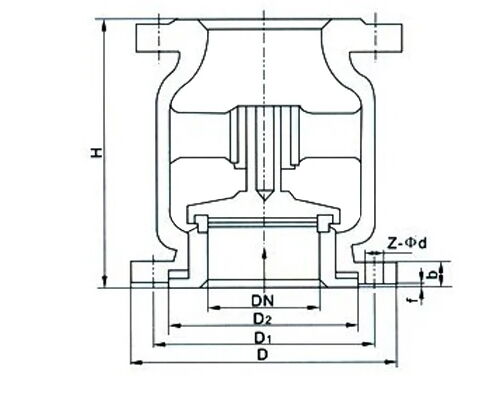

Main Dimensions and Connection Sizes
Nominal Diameter DN (mm) | Dimensions (mm) | |||||
L | D | D1 | D2 | b-f | z-Φd | |
15 | 85 | 95 | 65 | 45 | 14–2 | 4–Φ14 |
20 | 95 | 105 | 75 | 55 | 14–2 | 4–Φ14 |
25 | 105 | 115 | 85 | 65 | 14–2 | 4–Φ14 |
32 | 150 | 135 | 100 | 78 | 16–2 | 4–Φ18 |
40 | 160 | 145 | 110 | 85 | 16–3 | 4–Φ18 |
50 | 170 | 160 | 125 | 100 | 16–3 | 4–Φ18 |
65 | 180 | 180 | 145 | 120 | 18–3 | 4–Φ18 |
80 | 200 | 195 | 160 | 135 | 20–3 | 8–Φ18 |
100 | 210 | 215 | 180 | 155 | 20–3 | 8–Φ18 |
125 | 275 | 245 | 210 | 185 | 22–3 | 8–Φ18 |
150 | 300 | 280 | 240 | 210 | 24–3 | 8–Φ23 |
200 | 380 | 335 | 295 | 265 | 26–3 | 12–Φ23 |
250 | 430 | 405 | 355 | 320 | 30–3 | 12–Φ25 |
